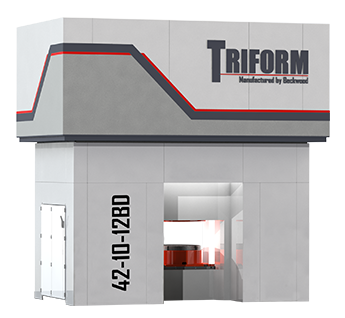

The Triform 42-10-12 deep draw sheet hydroforming press features a 12-inch draw depth capacity. The expansive 42-inch diameter forming area allows for a punch tool diameter up to 3 feet wide. Size does not sacrifice precision however, as the 42-10-12 offers exacting forming pressures up to 10,000 PSI evenly distributed across the entire forming area.
The 42-10-12 has it all, including the ability to store 10,000+ jobs, sequential programming of pressure and position, Triform’s proprietary “In-Sight” feature for physical inspection of a part mid-cycle, and the invaluable integrated tool change system decrease die changeover time. This press can also include a shuttle and T-table so operators can stage and move multiple tools simultaneously and virtually effortlessly. All of these features are designed to help increase throughput and keep you competitive.
The simple operation and maintenance for which Triform is known is another standard on this machine. Additionally, you know your investment is solid and designed for optimal uptime because it comes with PressLink for remote factory support and is backed by Beckwood’s industry leading service and support.
Learn more about deep draw sheet hydroforming
Download our sheet hydroforming whitepaper
Features of Triform Deep Draw Sheet Hydroforming Presses:
- Compatible with Cincinnati and Verson deep draw tooling
- System Diagnostics
- Alarm Handling and Logging
- Multi-level Password Protection
- PLC Input/ Output Visualization
- Batch Counter
- Average Cycle Timer
- Recipe storage up to 30 steps and 10,000+ recipes
- Sequential programming of pressure and punch position
- OEM set-up screen for remote support
- Standard VPN connection via Ethernet allows for remote factory support through PressLink
Benefits of Triform Deep Draw Sheet Hydroforming Presses:
- Able to operate in either fluid cell mode or deep draw mode
- Easy part development with proprietary “In-Sight” feature for visual inspection mid-process
- Low tooling costs with greater process & design flexibility
- Fast, inexpensive diaphragm changes
- Durable, with low maintenance requirements
- Fast cycle times
Press Information
Capabilities
| Max Blank Diameter | 42″ (1066 mm) |
| Chamber Pressure* | 10,000 psi (689 bar) |
| Draw Depth Capacity | 12″ (304 mm) |
| Lower Punch Force* | 2,023 Tons (2170 bar) |
| *Alternate pressures and lower punch forces available |
Control System
| Programmable Controls (PLC) | Allen Bradley CompactLogix |
| Touchscreen Interface | 17″ Color |
