Bending and straightening are forming processes used to shape, correct, or re-form elongated parts, weldments, and structural components by applying controlled force at specific locations along the workpiece. These operations are critical for achieving dimensional accuracy, alignment, and fit after fabrication, welding, or forming. Depending on part geometry and workflow requirements, bending and straightening presses may be configured horizontally or vertically. These processes are commonly used in aerospace, defense, shipbuilding, agriculture, construction, transportation, and heavy industrial manufacturing environments.
Press Design Considerations For Bending & Straightening
Bending and straightening press design is driven by part geometry, material behavior, force requirements, and production workflow. These considerations influence press architecture, frame rigidity, guidance systems, and control strategy.
Part Geometry, Length & Weight
Bending and straightening operations typically apply localized force at defined positions along the part. Required tonnage depends on material properties, cross-sectional geometry, and the magnitude of correction required. Presses must deliver controlled force without introducing unintended deformation.
Force Application & Correction Strategy
One of the primary advantages of rubber pad forming is the ability to use low-cost, single-sided tooling. Tools can be produced quickly from materials such as steel, aluminum, epoxy, composite substrates, 3D-printed materials, or wood. This significantly reduces upfront tooling cost and supports rapid iteration.
Workflow, Access & Orientation
Press orientation should support efficient loading, operator access, and integration with upstream or downstream processes. Horizontal configurations are often preferred for long members, while vertical or C-frame configurations provide improved access for complex assemblies and weldments.
Beckwood Bending & Straightening Solutions
Beckwood engineers and manufactures custom hydraulic bending and straightening press systems designed to support demanding structural correction applications across a wide range of industries.

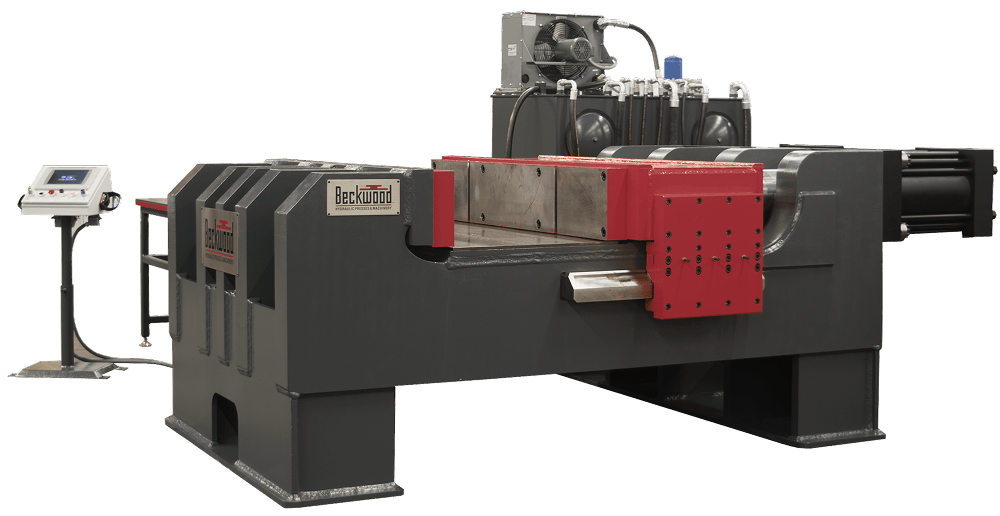

Horizontal Bulldozer Style Presses
Side-acting horizontal presses are well suited for bending and straightening long or heavy parts such as extrusions, beams, frames, and chassis components. These presses simplify loading and unloading, improve ergonomics, and accommodate severe off-center loading conditions.
C-Frame & Multi-Action Straightening Presses
For large weldments, fabricated assemblies, and structural components, Beckwood designs C-frame straightening presses with multiple independently controlled actions. These systems allow force to be applied at specific locations to correct distortion introduced during welding or fabrication. Multi-action configurations are commonly used in shipbuilding, defense, and heavy industrial environments where access, localized correction, and flexibility are critical.
Lighter-Duty Straightening Presses
For precision straightening of long, slender components such as spars, stringers, and extrusions, Beckwood offers compact C-frame straightening presses. These systems provide force and position control with simple, intuitive operation, making them well suited for localized correction along long parts. Their compact footprint and mobility allow the press to be repositioned along the length of a component as needed, supporting efficient straightening without moving large or heavy parts.
Gantry-Style Straightening Presses with Traveling Ram
For large or heavy components that must remain stationary during straightening, Beckwood designs gantry-style press systems with a traveling ram head. In these configurations, the part is supported in a fixed position while the ram traverses along its length to apply controlled, localized force where correction is required. Gantry-style systems are well suited for long weldments, large fabrications, and shipyard or heavy industrial applications where part movement is impractical. This approach improves ergonomics, supports precise correction, and enables straightening of very large structures without repositioning the workpiece.
Bending & Straightening FAQ
What types of parts are commonly bent or straightened using hydraulic presses?
Typical parts include beams, extrusions, frames, welded assemblies, structural members, chassis components, and large fabricated parts.
Why are horizontal presses often used for bending and straightening?
Horizontal presses simplify handling of long or heavy parts and are well suited for applications with significant off-center loading.
When are C-frame straightening presses used?
C-frame presses are commonly used for straightening large weldments and assemblies where access, localized force application, and multiple correction points are required.
Can bending and straightening presses be automated?
Yes. These presses can be integrated with part supports, handling systems, or automated positioning to improve ergonomics and throughput.
Can Beckwood customize a press for my bending or straightening application?
Yes. Beckwood designs custom bending and straightening press systems tailored to specific part geometries, materials, force requirements, production volumes, and facility constraints.
