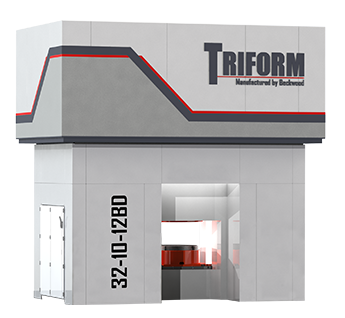

The Triform 32-10-12 deep draw sheet hydroforming press features a 12 inch punch stroke with precise forming pressure up to 10,000 PSI distributed evenly across a 32 inch diameter forming area. To minimize the overall footprint, this press is offered in a vertical configuration and will require a pit to accommodate the lower punch cylinder.
The 32-10-12DD provides all of the must have features associated with the Triform family including the proprietary “In-Sight” tool which allows for physical inspection of a part mid-cycle and an integrated tool change system to reduce die changeover times. This tool changer can also include a shuttle and T-rail so operators can stage and move multiple tools simultaneously with little effort. These features are designed to help decrease forming times while increasing output for operations with high-mix, low-volume production.
This deep draw sheet hydroforming press offers the simple operation and maintenance for which Triform is known. Additionally, you know your investment is solid and designed for optimal uptime because it comes with PressLink for remote factory support and is backed by Beckwood’s industry leading service and support.
Learn more about deep draw sheet hydroforming
Download our sheet hydroforming whitepaper
Features of Triform Deep Draw Sheet Hydroforming Presses:
- Compatible with Cincinnati and Verson deep draw tooling
- System Diagnostics
- Alarm Handling and Logging
- Multi-level Password Protection
- PLC Input/ Output Visualization
- Batch Counter
- Average Cycle Timer
- Recipe storage up to 30 steps and 10,000+ recipes
- Sequential programming of pressure and punch position
- OEM set-up screen for remote support
- Standard VPN connection via Ethernet allows for remote factory support through PressLink
Benefits of Triform Deep Draw Sheet Hydroforming Presses:
- Able to operate in either fluid cell mode or deep draw mode
- Easy part development with proprietary “In-Sight” feature for visual inspection mid-process
- Low tooling costs with greater process & design flexibility
- Fast, inexpensive diaphragm changes
- Durable, with low maintenance requirements
- Fast cycle times
Press Information
Capabilities
| Max Blank Diameter | 32″ (813 mm) |
| Chamber Pressure* | 10,000 PSI (689 bar) |
| Draw Depth Capacity | 12″ (304 mm) |
| Lower Punch Force* | 1,170 Tons (1255 bar) |
| *Alternate pressures and lower punch forces available |
Control System
| Programmable Controls (PLC) | Allen Bradley CompactLogix |
| Touchscreen Interface | 17″ Color |
