| Tonnage | 150 |
| Application | Hot Forging, Hot Forming, General Forming |
| Industry | Agriculture |

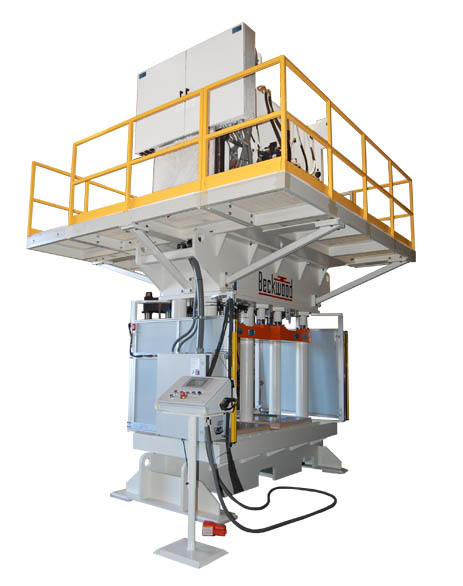

| Frame Style | Non-traditional: 5-Post |
| Special Features | • Multi-ram, 5-post press design • Ram Safety Catcher System • Programmable Pressure Control |
| Intended Use | Used to form disc blades for the agriculture industry |
Custom Features:
- Dwell capability integrated into customer provided in-die water cooling system
- Multi-ram press design; each ram is equipped with (4) self-lubricating replaceable ram guide bushings
- Hydraulic Ram Safety Catcher System provided for secondary holding of ram the in any position during the stroke and is designed for the static load of the ram and tooling
- Bolt-on expanded metal guard the side and rear of the press
- Kidney loop filter/cooler circuit with thermostatically-controlled electric fan-powered oil cooler
- Proportional valve provides programmable pressure control
- Additional I/O for robot & line controller PLC handshakes, die purging, etc.
- Calculated Ram Speeds: Fast Approach: 616 IPM; Low Ton Pressing: 196 IPM; Medium Ton Pressing: 147 IPM; High Ton Pressing: 104 IPM; Slow Retract: 353 IPM; Fast Retract: 493 IPM
Learn more about Forging Presses
Common Features on Beckwood Presses:
- Heavy duty box beam design for superior rigidity and modular tie rod assembly utilizing pre-tensioning nuts for optimum performance
- Fully adjustable Parker cylinders with full rated tonnage throughout the stroke
- PressLink Remote Support module for complementary diagnostics & troubleshooting
- Dual linear and pressure transducers in the main ram cylinders for optimal reliability and redundancy
- Allen Bradley or Siemens PLC, programmable control system with touch screen HMI and Recipe Functionality
- Structure designed for Infinite Life in accordance with rigorous simulation analysis through FEA (Finite Element Analysis) design testing
- Backed by Beckwood’s industry leading dedicated service and support team
