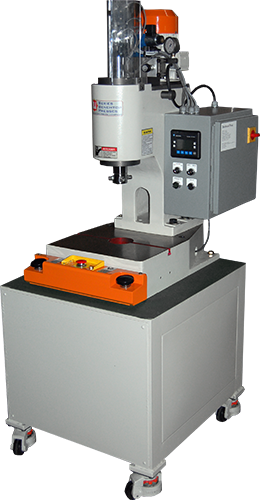

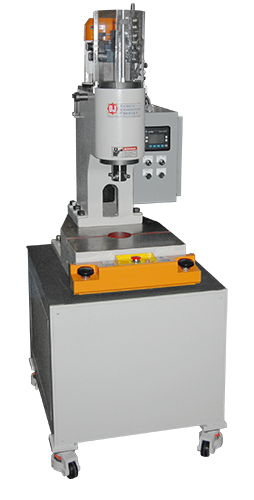

The DHC models of benchtop presses offer 3-5 tons of pressing force, optimal for light-duty assembly. As a result of these lower tonnages the frames are made of more affordable cast iron, but these machines are just as durable and reliable as any benchtop press offered by Beckwood.
The DHC line is standard but can be customized with the options listed below.
| Specification | DHC-3 | DHC-5 |
|---|---|---|
 |
 |
|
| Tonnage | 3.3 | 5.5 |
| Stroke | 5.9″ | 5.9″ |
| Open Height | 9.8″ | 9.8″ |
| Approach Speed | 368 IPM | 315 IPM |
| Pressing Speed | 153 IPM | 97 IPM |
| Retract Speed | 2,630 IPM | 140 IPM |
| Bed Table | 17.7″W × 14.2″D | 17.7″W × 14.2″D |
| Motor | 2 HP | 2 HP |
| Weight | 775 lbs | 795 lbs |
| Throat Distance | 6.3″ | 6.3″ |
| Frame Construction | Cast Iron | Cast Iron |
Standard Features
- Adjustable limit switches
- Variable pressing speeds
- Mechanical bottom stop adjustment
- Quiet operation
- Fast speeds
- 1 year limited warranty
- Backed by Beckwood’s industry-leading Service & Support team
Options
- Complete Automation & Integration Solutions
- Light Curtains & Safety Guarding
- Machining Requirements
- Work Table with Casters
- Multiple Control Platforms
- 460V/3PH Power System
- Adjustable Stroke & Shut Height
- Pressure Switch
- Air/Water Cooler
- Reservoir Heater
