The servo-electric presses shown below are fully configurable. Bed size, ram size, frame style, dwell time, power requirements, and more can be tailored to your exact needs.

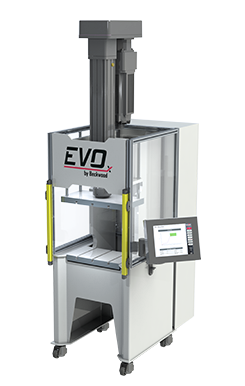

C-Frame Configuration (Model C3-100)
| Force | 100,000lbf (50T) |
| Ram/Bed Size* | 20″ x 30″ |
| Daylight | 24″ |
| Stroke | 12″ or 24″ |
| Throat Distance | 11″ |
*Model also available without ram

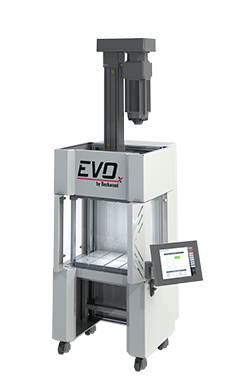

4-Post Configuration (Model P3-100)
| Force | 100,000lbf (50T) |
| Ram/Bed Size | 24″x 36″ |
| Daylight | 30” |
| Stroke | 12″ or 24″ |
Universal Specs
| Actuator Type | Roller Screw |
| Interface | 15″ touchscreen PC |
Standard Features
- Positional repeatability within +/-0.0005”
- Force & positional feedback
- Data acquisition measuring torque, force, position, and time at a maximum rate of 1 sample / ms
- Programmable dwell time
- Roller-screw actuator design for longer life
- Light curtains and polycarbonate safety guarding
- Backed by Beckwood’s industry-leading Service & Support team
Options
- C-frame or 4-post frame style
- Customizable worktables for added storage
- Extended (infinite) dwell
- Heated platens
- 230v or 460v power configurations
- Bar code scanner – Part traceability with serialization
