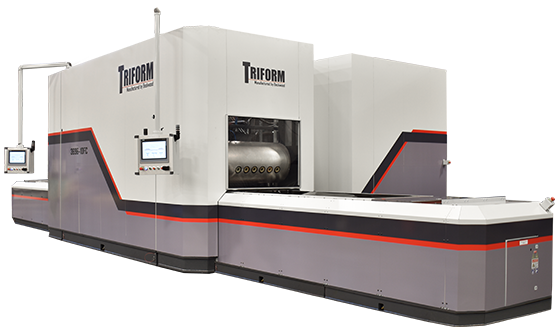

This 36″ x 96″ sheet hydroforming press is ideal for large aerospace components like structural ribs and wing stringers as well as long medical parts like orthopedic devices. Depending on the size of your parts, you will likely be able to form multiple parts in a single cycle with the 3696-10FC, and the dual shuttle system ensures continuous production to increase throughput. With 10,000 PSI of even forming pressure, you can also form thick, high-strength alloys with ease.
Learn more about fluid cell sheet hydroforming
Download our sheet hydroforming whitepaper
Features of Triform Fluid Cell Sheet Hydroforming Presses:
- Programmable Diaphragm Pressure
- System Diagnostics
- Alarm Handling and Logging
- PLC Input/ Output Visualization
- Batch Counter
- Average Cycle Timer
- Standard VPN connection via Ethernet allows for remote factory support through PressLink
Benefits of Triform Fluid Cell Sheet Hydroforming Presses:
- Low tooling costs with greater process & design flexibility
- Improved Part Quality
- Compact Design Allows for Portability and Flush Floor Operation
- Simple-to-Operate with Touchscreen Interface
- Alternative to Press Brakes and Rubber Pad Presses
- Durable, with low maintenance requirements
- Fast cycle times
Press Information
Capabilities
| Forming Area | 36″ X 96″ (914mm X 2438mm) |
| Chamber Pressure* | 10,000 psi (689 bar) |
| Tray Depth | 8″ |
| *Alternate pressure options available |
Control System
| Programmable Controls (PLC) | Allen Bradley CompactLogix |
| Touchscreen Interface | 10″ Color Touchscreen |
