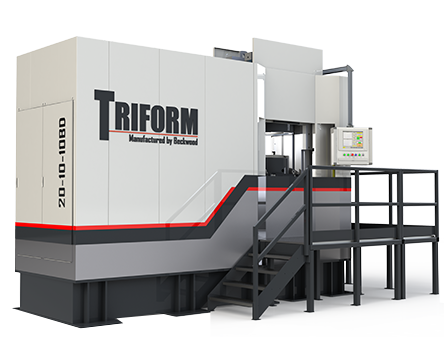

The Triform 20-10-10 deep draw sheet hydroforming press features a 20 inch round forming area, 10,000 PSI of pressure, and a 10 in depth-of-draw. Together, these specifications create a powerful machine capable of drawing and forming a multitude of part sizes.

This model provides all of the “standard” luxuries of the Triform line including our proprietary “In-Sight” feature which allows you to stop the press and make a visual and physical inspection of a part during the forming sequence. This feature is excellent for rapid part development and allows you to check the part to ensure your recipe is forming properly. Additionally this model can come equipped with an optional tool changer. These features are incredibly valuable to operations with high mix / low volume production.

This deep draw sheet hydroforming press is easy to operate and maintain. You will have worry free ownership knowing your equipment is backed by Beckwood’s industry leading service and support and offers PressLink for remote factory support.

Learn more about deep draw sheet hydroforming
Download our sheet hydroforming whitepaper

Pricing

See How Deep Draw Sheet Hydroforming Works
Watch this Press in Action
Consult a Beckwood Engineer

Features of Triform Deep Draw Sheet Hydroforming Presses:

  • Compatible with Cincinnati and Verson deep draw tooling
  • System Diagnostics
  • Alarm Handling and Logging
  • Multi-level Password Protection
  • PLC Input/ Output Visualization
  • Batch Counter
  • Average Cycle Timer
  • Recipe storage up to 30 steps and 10,000+ recipes
  • Sequential programming of pressure and punch position
  • OEM set-up screen for remote support
  • Standard VPN connection via Ethernet allows for remote factory support through PressLink

Benefits of Triform Deep Draw Sheet Hydroforming Presses:

  • Able to operate in either fluid cell mode or deep draw mode
  • Easy part development with proprietary “In-Sight” feature for visual inspection mid-process
  • Low tooling costs with greater process & design flexibility
  • Fast, inexpensive diaphragm changes
  • Durable, with low maintenance requirements
  • Fast cycle times

Press Information

Capabilities
Max Blank Diameter20″ (508 mm)
Chamber Pressure*10,000 psi (689 bar)
Draw Depth Capacity10″ (254 mm)
Lower Punch Force*470 Tons (505 bar)
*Alternate pressures and lower punch forces available
Control System
Programmable Controls (PLC)Allen Bradley CompactLogix
Touchscreen Interface17″ Color
