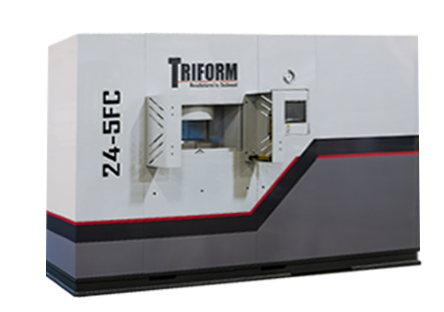

With a 24”-diameter forming area and 5,000 PSI of pressure, the Triform model 24-5FC fluid cell sheet hydroforming press is one of the most versatile models available on the market today. Ideal for low-volume, high-mix production, this press can form several parts of varying geometries and sizes in a single cycle in under 20 seconds. The unique pressure containment system on the 24-5FC significantly reduces the press’ size and weight without sacrificing structural integrity or durability. Additionally, the compact flush-floor design uses minimal floor space and does not require any pits or special foundations.
Learn about the benefits of sheet hydroforming
Download our sheet hydroforming whitepaper
Features of Triform Fluid Cell Sheet Hydroforming Presses:
- Programmable Diaphragm Pressure
- System Diagnostics
- Alarm Handling and Logging
- PLC Input/ Output Visualization
- Batch Counter
- Average Cycle Timer
- Standard VPN connection via Ethernet allows for remote factory support through PressLink
Benefits of Triform Fluid Cell Sheet Hydroforming Presses:
- Low tooling costs with greater process & design flexibility
- Improved Part Quality
- Compact Design Allows for Portability and Flush Floor Operation
- Simple-to-Operate with Touchscreen Interface
- Alternative to Press Brakes and Rubber Pad Presses
- Durable, with low maintenance requirements
- Fast cycle times
Press Information
Capabilities
| Forming Area | 24″ dia (609 mm) Round |
| Max Chamber Pressure* | 5,000 psi (345 bar) |
| *Higher pressure available |
Control System
| Programmable Controls (PLC) | Allen Bradley CompactLogix |
| Touchscreen Interface | 10″ Color Touchscreen |
