DBP benchtop presses are hydropneumatic with a welded steel frame. These presses are small but durable and able to tackle more of your manufacturing needs than you may first think. This line is light-duty, offering 3-10 tons of precision pressing force.
The DBP line is standard but can be customized with the options listed below.

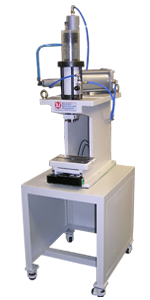

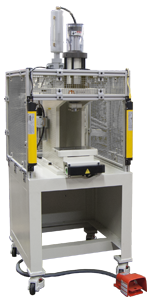

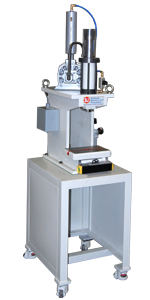

| Specification | DBP-3 | DBP-6 | DBP-10 |
|---|---|---|---|
 |
 |
 |
|
| Tonnage | 3 | 6 | 10 |
| Stroke (Working) | 1″ | 1″ | 1″ |
| Stroke (Total) | 4″ | 4″ | 4″ |
| Open Height | 10″ | 10″ | 12″ |
| Boosting Ratio | 1:25 | 1:25 | 1:25 |
| Air Pressure (PSI) | 43–100 | 43–100 | 43–100 |
| Bed Table | 10.5″W × 7″D | 10.5″W × 7″D | 14″W × 9.5″D |
| Power | 120V / 1Ph | 120V / 1Ph | 120V / 1Ph |
| Air Consumption (Ft³/cyc) | 1.0 | 2.0 | 2.5 |
| Weight | 440 lbs | 550 lbs | 880 lbs |
| Shank Holder Diameter | 0.79″ | 0.79″ | 0.98″ |
| Throat Distance | 4″ | 4″ | 5″ |
| Frame Construction | Steel | Steel | Steel |
Standard Features
- Air/oil press utilizing shop air and 120V 1-phase
- Shank holder with screw adjustment
- Standard pressure and speed control
- Allen Bradley PLC Control System with Operator Interface
- Quiet operation
- 1 year limited warranty
- Backed by Beckwood’s industry-leading Service & Support team
Options
- Complete Automation & Integration Solutions
- Light Curtains & Safety Guarding
- Machining Requirements
- Work Table with Casters
- Multiple Control Platforms
- 460V/3PH Power System
- Adjustable Stroke & Shut Height
- Pressure Switch
- Air/Water Cooler
- Reservoir Heater
