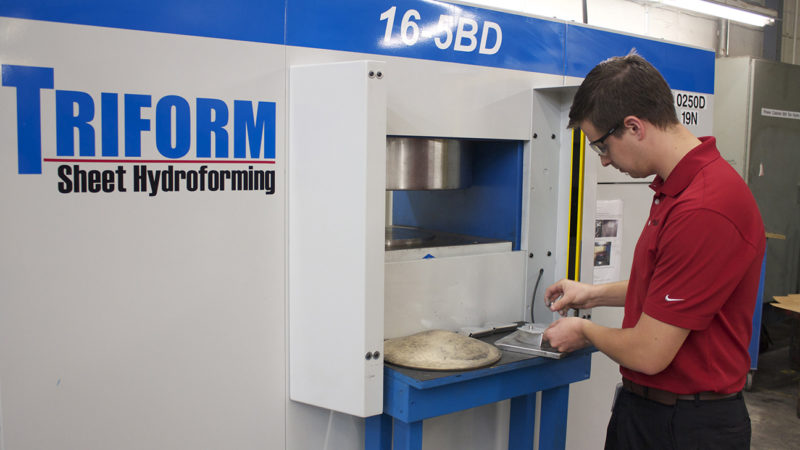

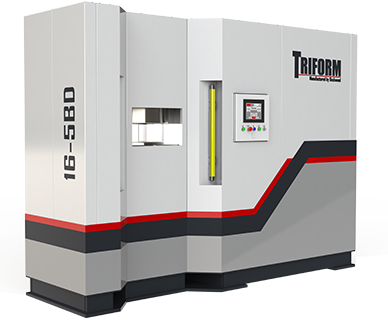

The Triform model 16-5FC is a small fluid cell sheet hydroforming press that features a 16-inch diameter forming area and 5,000 PSI of forming pressure. Ideal for small aerospace, medical and electronics parts, this press is incredibly compact and designed for fast, simple operation.
The 16-5FC is small but mighty, but don’t let its size fool you. The 16-inch round forming area can handle a larger percentage of your parts than you may think.
Learn more about fluid cell sheet hydroforming
Download our sheet hydroforming whitepaper
Features of Triform Fluid Cell Sheet Hydroforming Presses:
- Programmable Diaphragm Pressure
- System Diagnostics
- Alarm Handling and Logging
- PLC Input/ Output Visualization
- Batch Counter
- Average Cycle Timer
- Standard VPN connection via Ethernet allows for remote factory support through PressLink
Benefits of Triform Fluid Cell Sheet Hydroforming Presses:
- Low tooling costs with greater process & design flexibility
- Improved Part Quality
- Compact Design Allows for Portability and Flush Floor Operation
- Simple-to-Operate with Touchscreen Interface
- Alternative to Press Brakes and Rubber Pad Presses
- Durable, with low maintenance requirements
- Fast cycle times
Press Information
Capabilities
| Forming Area | 16″ dia (406 mm) Round |
| Max Chamber Pressure* | 5,000 psi (345 bar) |
| *Higher pressure available |
Control System
| Programmable Controls (PLC) | Allen Bradley CompactLogix |
| Touchscreen Interface | 10″ Color Touchscreen |
