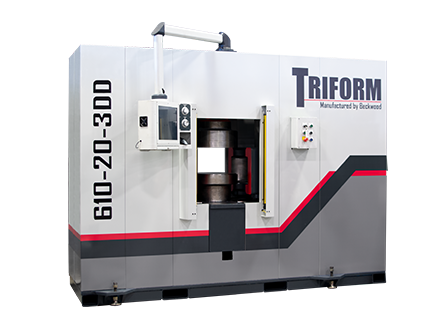

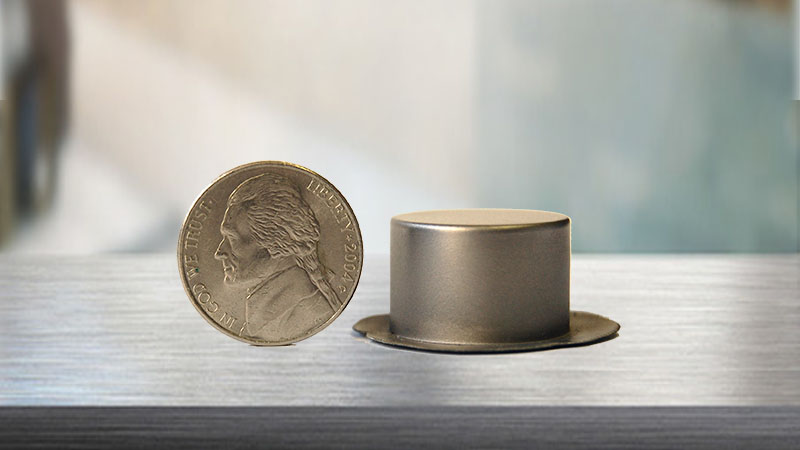

The Triform 610-20-3DD is the most compact deep draw sheet hydroforming press in Triform’s line-up, boasts a flush floor design, and offers the highest forming pressure available. This press comes standard with 20,000 PSI. It offers a 6″ x 10″ oval forming area with a draw depth up to 3 inches. These characteristics make it perfect for the formation of small parts as often needed in the medical, electrical, computer and aerospace industries. If you are drawing small parts from strong materials such as titanium, this is the optimal deep draw press for your operation.
The 610-20-3DD deep draw sheet hydroforming machine provides all of the “standard” luxuries of the Triform line including our proprietary “In-Sight” feature which allows you to stop the press at any point in the cycle to visually inspect the results and adjust the recipe if needed. This greatly expedites R&D for new deep draw parts.
As with all Triform presses, this machine includes remote factory support and is backed by Beckwood’s industry leading service and support.
Learn more about deep draw sheet hydroforming
Download our sheet hydroforming whitepaper
Features of Triform Deep Draw Sheet Hydroforming Presses:
- Compatible with Cincinnati and Verson deep draw tooling
- System Diagnostics
- Alarm Handling and Logging
- Multi-level Password Protection
- PLC Input/ Output Visualization
- Batch Counter
- Average Cycle Timer
- Recipe storage up to 30 steps and 10,000+ recipes
- Sequential programming of pressure and punch position
- OEM set-up screen for remote support
- Standard VPN connection via Ethernet allows for remote factory support through PressLink
Benefits of Triform Deep Draw Sheet Hydroforming Presses:
- Able to operate in either fluid cell mode or deep draw mode
- Easy part development with proprietary “In-Sight” feature for visual inspection mid-process
- Low tooling costs with greater process & design flexibility
- Fast, inexpensive diaphragm changes
- Durable, with low maintenance requirements
- Fast cycle times
Press Information
Capabilities
| Max Blank Diameter | 6″ X 10″ Oval (152 X 254 mm) |
| Chamber Pressure* | 20,000 psi (1379 bar) |
| Draw Depth Capacity | 3″ (76 mm) |
| Max Punch Diameter | 4″ (101 mm) |
| Lower Punch Force* | 125 Tons |
| *Alternate pressures and lower punch forces available |
Control System
| Programmable Controls (PLC) | Allen Bradley CompactLogix |
| Touchscreen Interface | 17″ Color |
