CUSTOM GIB-GUIDED
HYDRAULIC PRESSES
Experience Superior Ram Rigidity
Through The Life of Your Press

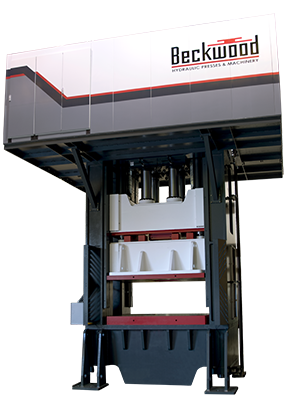

A custom gib-guided press from Beckwood is engineered-to-order and tailored to your exact needs. Force on these custom machines can be as low as 2 tons or exceed 10,000 tons, and working areas can be scaled to accommodate the largest and smallest die sets. Gibs can be configured alongside a variety of other press customization options including electric heating elements, bed cushions, quick die change or shuttle systems, added safety features, and more. This versatility makes a gib-guided frame style suitable for a range of applications from stamping to forging and beyond.
Standard Gib-Guided Hydraulic Presses

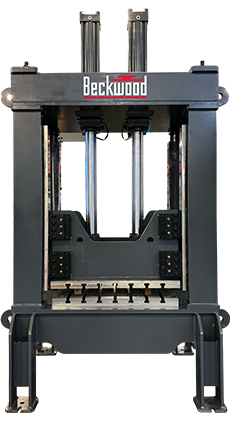

Need a rugged and dependable hydraulic press, but don’t have time to wait? Ascent presses by Beckwood are a standard line of gib-guided hydraulic presses pre-engineered for cost efficiency and fast shipment. Simply select your forming area size and choose from 4 tonnage capacities, and your machine can bypass the design phase altogether, saving you both time and money. Learn about this product line and browse our full range of the Ascent standard hydraulic press models.
Gib-Guided Press FAQs
What Is A Gib-Guided Press?

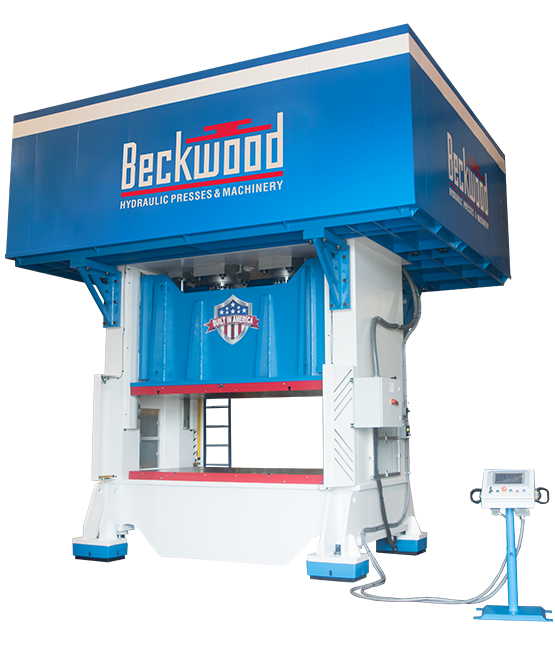

Gib-guided presses, also known as straight-sided presses, are the frame style of choice for demanding applications where rigidity matters most. These presses offer the most precise and adjustable method for ram guidance, making them an ideal choice for use in applications such as blanking/punching, forging, deep-drawing, progressive die, or single station stamping. Both press types—hydraulic, and servo-electric—can be configured within a gib-guided frame.
How Do Gibs Work?
Gibs are precision press components that guide the reciprocating motion of the ram to maintain superior squareness and parallelism throughout the stroke. They are designed to fit tightly into a corresponding slot or channel in the press frame, creating a precise sliding surface for the ram. Because gibs are fully adjustable left-to-right as well as front-to-back, you’re guaranteed to maintain precise parallelism for the life of your press. Beckwood offers gib-guided press systems with either 4-point or 8-point gibs and self-lubricating, graphite-impregnated bronze wear strips to provide the most precise level of ram guidance and ease of maintenance.
