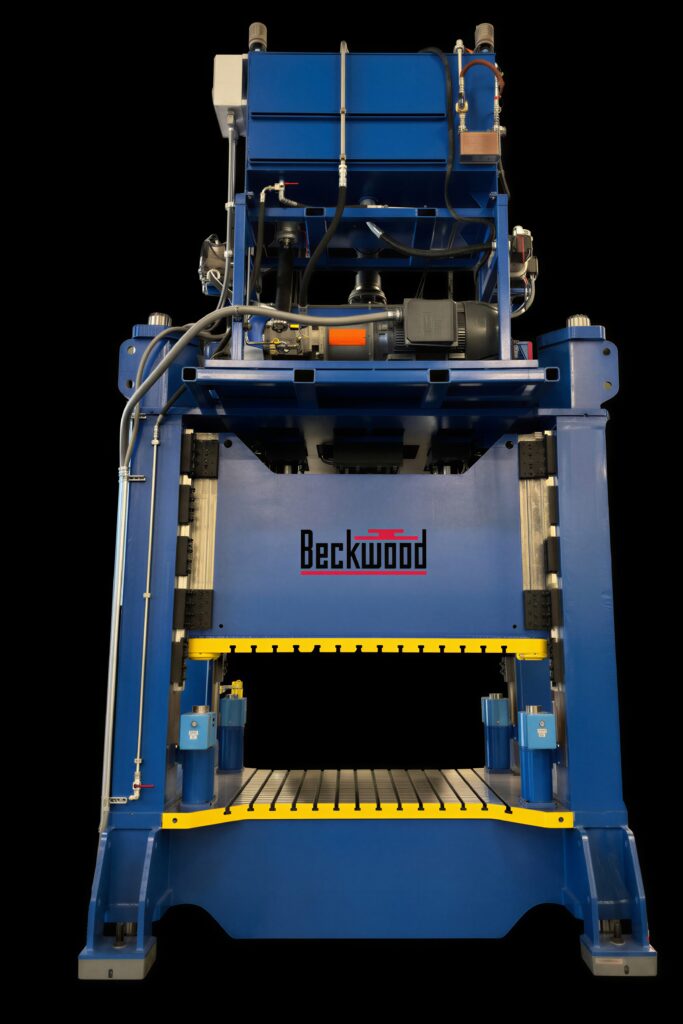

Large 400 ton gib-guided hydraulic punching press, 400 ton blanking press
Tonnage400
ApplicationPunching/Blanking
IndustryAppliance
Frame StyleGib-Guided
Special Features• 8-Point Square Gib Guidance System
• Vibration Dampening Pads
Intended UseUsed in conjunction with a coil feed system to blank and punch “skins” for a furnace manufacturer

Custom Features:

  • 66” x 108” bed and ram bolsters
  • 24” Shut Height; 36” Daylight
  • 8 point square gib guidance system minimizes lateral movement under load
  • Vibration dampening pads provided to absorb mechanical energy for overall system protection
  • Crown mounted power system and reservoir
  • Kidney loop filter/cooler circuit with thermostatically controlled fan motor
  • Ram Speeds: Fast Approach 177 IPM; Pressing 20 IPM; Return 159 IPM
  • Controls provide inch mode, semi-automatic mode or fully automatic mode

Learn more about Punching/Blanking, Gib-Guided/Straight-Sided Presses, Appliance forming, and Automation in our Hydraulic Press Handbook.

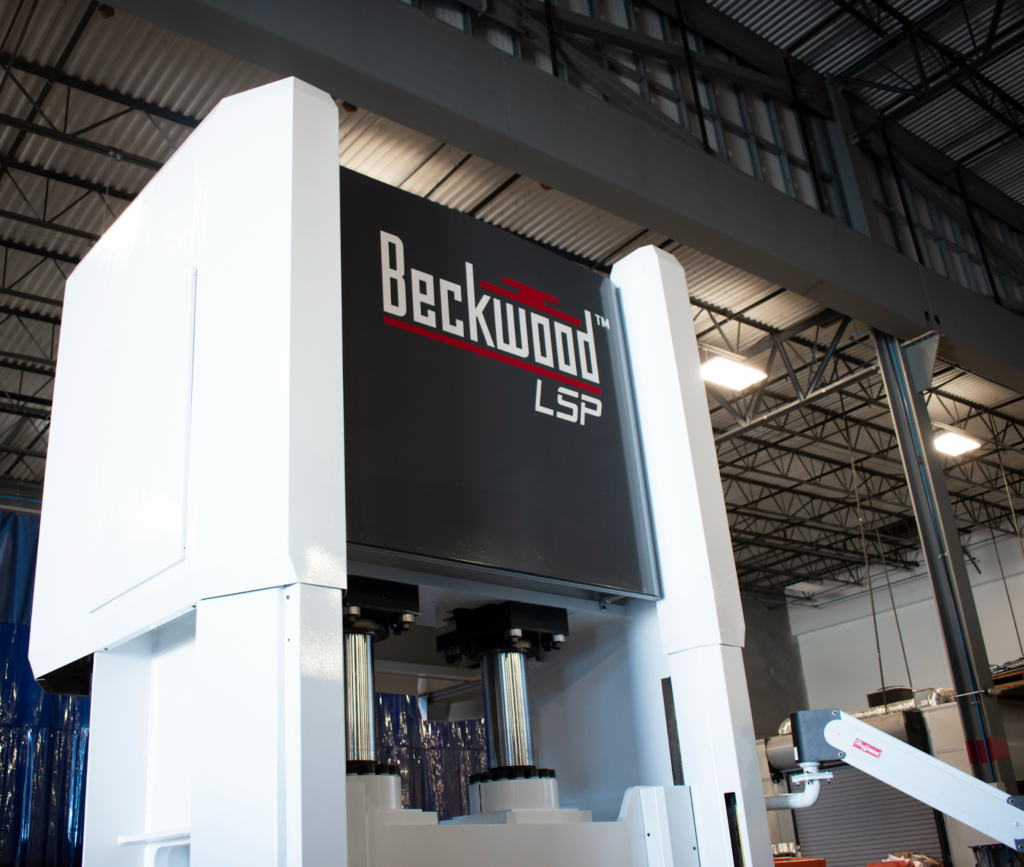

Common Features on Beckwood Presses:

  • Heavy duty box beam design for superior rigidity and modular tie rod assembly utilizing pre-tensioning nuts for optimum performance
  • Fully adjustable Parker cylinders with full rated tonnage throughout the stroke
  • PressLink Remote Support module for complementary diagnostics & troubleshooting
  • Dual linear and pressure transducers in the main ram cylinders for optimal reliability and redundancy
  • Allen Bradley or Siemens PLC, programmable control system with touch screen HMI and Recipe Functionality
  • Structure designed for Infinite Life in accordance with rigorous simulation analysis through FEA (Finite Element Analysis) design testing
  • Backed by Beckwood’s industry leading dedicated service and support team
