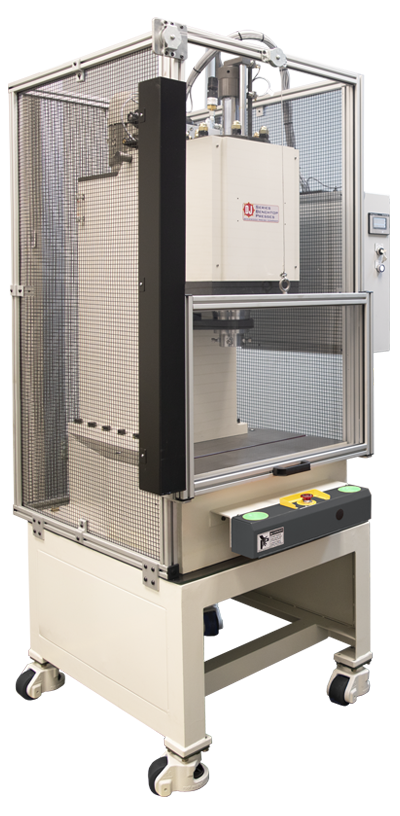

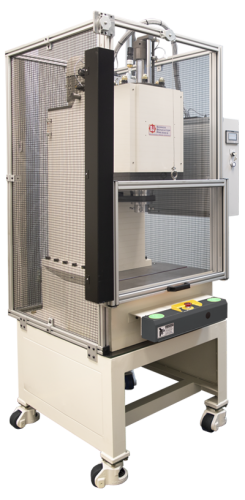

The DHS line of cost- and energy-efficient benchtop presses feature durable steel frames and are backed by Beckwood’s industry-leading service team. With models ranging from 11-22 tons, you’re sure to find one that fits your light-duty assembly application. Like the rest of the DJ Series, these presses come standard but can be customized to meet your needs.

PRODUCT SPECIFICATIONS
Model:
DHS-10
DHS-15
DHS-20
Tonnage:
11
16.5
22
Approach Speed:
500 IPM
500 IPM
437 IPM
Pressing Speed:
63 IPM
47 IPM
44 IPM
Retract Speed:
290 IPM
259 IPM
259 IPM
Bed Table:
23.6"W x 14.2"D
23.6"W x 14.2"D
27.6"W x 15.7"D
Motor Speed:
3HP
3HP
5HP
Weight:
2,094lbs
2,755lbs
3,527lbs
Throat Distance:
7.1"
8.1"
8.7"
Frame Construction:
Steel
Steel
Steel
Quote a DHS benchtop press
See a DJ benchtop press in action
Learn about servo-electric benchtop presses

Standard Features

  • Adjustable limit switches
  • Variable pressing speeds
  • Mechanical bottom stop adjustment
  • Quiet operation
  • Fast speeds
  • 1 year limited warranty
  • Backed by Beckwood’s industry-leading Service & Support team

Options

  • Complete Automation & Integration Solutions
  • Light Curtains & Safety Guarding
  • Machining Requirements
  • Work Table with Casters
  • Multiple Control Platforms
  • 460V/3PH Power System
  • Adjustable Stroke & Shut Height
  • Pressure Switch
  • Air/Water Cooler
  • Reservoir Heater
