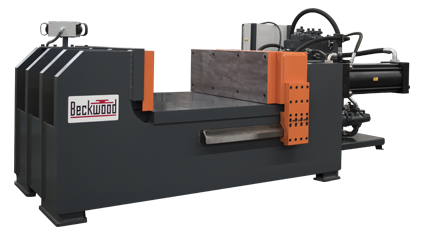

400 Ton Gib-Guided Bulldozer Press, also known as a side-acting or horizontal press
Tonnage400
ApplicationBending & Straightening
IndustryTransportation
Frame StyleGib-Guided
Special Features• Gib Guidance System
Intended UseUsed to bend and straighten locomotive track rails

Custom Features:

  • Ram bolster guided by adjustable self lubricating gib guidance system
  • Skid mounted power system and reservoir
  • Kidney loop filter/cooler circuit with thermostatically controlled fan motor
  • Ram Speeds: Fast Approach: 233 IPM, Pressing: 49 IPM, Return: 272 IPM

Common Features on Beckwood Presses:

  • Heavy duty box beam design for superior rigidity and modular tie rod assembly utilizing pre-tensioning nuts for optimum performance
  • Fully adjustable Parker cylinders with full rated tonnage throughout the stroke
  • PressLink Remote Support module for complementary diagnostics & troubleshooting
  • Dual linear and pressure transducers in the main ram cylinders for optimal reliability and redundancy
  • Allen Bradley or Siemens PLC, programmable control system with touch screen HMI and Recipe Functionality
  • Structure designed for Infinite Life in accordance with rigorous simulation analysis through FEA (Finite Element Analysis) design testing
  • Backed by Beckwood’s industry leading dedicated service and support team
