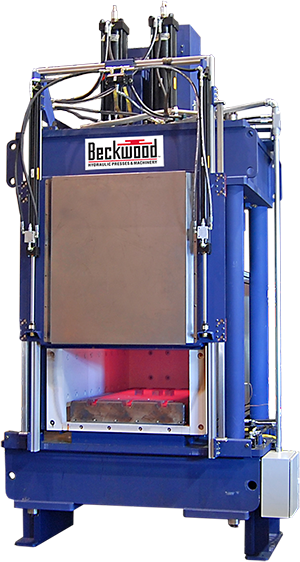

Tonnage150
ApplicationHot Forming/SPF
IndustryAerospace
Frame Style4-Post
Special Features• Heated platens up to 1400-degrees
• Insulated Door System
• Active Leveling Control
Intended UseUsed to hot form titanium parts in the aerospace industry

Custom Features:

  • (2) 24” x 48” Duraloy TMA-4505 electrically heated platens (1,400-degree F temperature capacity)
  • Multi-zone temperature control for ultimate uniformity
  • Insulated automatic door system grants 2-sided access while maximizing heat efficiency
  • Equipped with four-axis Active Leveling Control (ALC) for precision bed to ram parallelism
  • Calculated Ram Speeds: Approach: 120 IPM; Pressing: 1- 44 IPM; Return: 79 IPM
  • Kidney loop filter/cooler circuit with thermostatically controlled fan motor
  • Low level float switch and high temperature shut down switch to ensure oil is within safe operating parameters

Common Features on Beckwood Presses:

  • Heavy duty box beam design for superior rigidity and modular tie rod assembly utilizing pre-tensioning nuts for optimum performance
  • Fully adjustable Parker cylinders with full rated tonnage throughout the stroke
  • PressLink Remote Support module for complementary diagnostics & troubleshooting
  • Dual linear and pressure transducers in the main ram cylinders for optimal reliability and redundancy
  • Allen Bradley or Siemens PLC, programmable control system with touch screen HMI and Recipe Functionality
  • Structure designed for Infinite Life in accordance with rigorous simulation analysis through FEA (Finite Element Analysis) design testing
  • Backed by Beckwood’s industry leading dedicated service and support team
